Left Effects Speaker -R209- /Right Effects Speaker -R210-, REMOVING AND INSTALLING, 8RF: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Lower the rear headliner. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

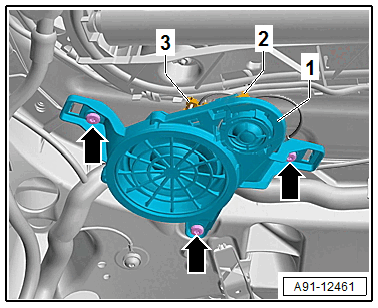

-- Release and disconnect the connectors -2 and 3- from the left rear speaker -1-.
-- Remove the screws -arrows- from the left rear speaker -1-.
-- Remove the left rear speaker -1- from the roof.
