Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, PREMIUM SOUND SYSTEM (9VS), 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM, THROUGH MY 2020: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the luggage compartment floor.
-- Remove the Subwoofer -R211-. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM .
-- Release and disconnect the connectors -3- from the Digital Sound System Control Module -J525- -1-.
-- Insert the Fiber-Optic Repair Set - Connector Protective Caps:VAS 6223/9 -1- onto the MOST bus connector -2-.

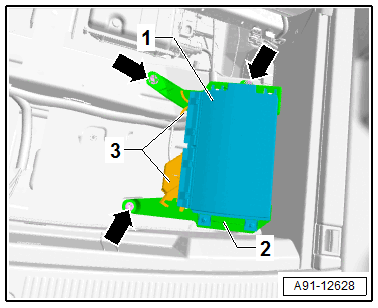

-- Remove the nuts -arrows- and remove the Digital Sound System Control Module -J525- -1- with the bracket -2-.
-- Remove the screws -2- and pivot the Digital Sound System Control Module -J525- -1- out of the bracket -3- in the -direction of the arrow-.
