Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, ADVANCED SOUND SYSTEM (8RF), 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM, FROM MY 2021: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the luggage compartment floor.
-- Remove the Subwoofer -R211-. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM .
-- Remove the right luggage compartment carpet bracket. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .

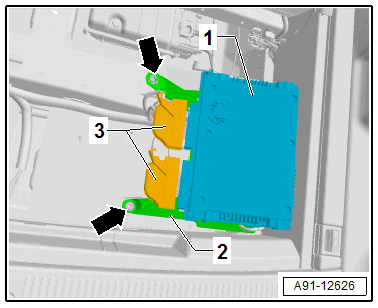

-- Release and disconnect the connectors -3- from the Digital Sound System Control Module -J525- -1-.
-- Remove the nuts -arrows- and remove the Digital Sound System Control Module -J525- -1- with the bracket -2-.
-- Remove the screws -3- and remove the Digital Sound System Control Module -J525- -1- from the bracket -2-.
