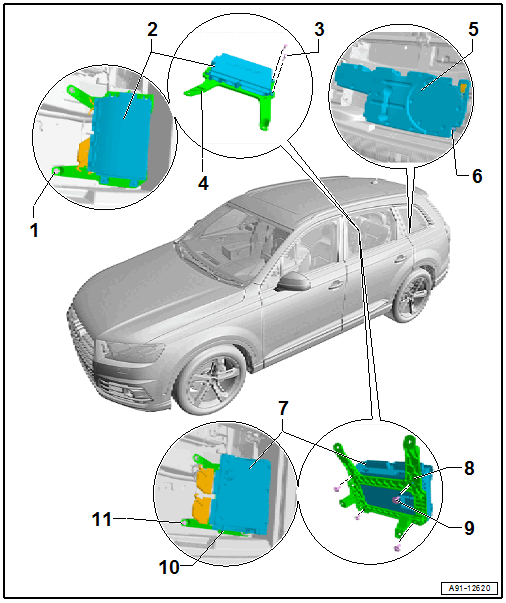

Component Location Overview - Sound System, Sound Amplifier And Subwoofer, 7-Seater With 48V Vehicle Electrical System
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- For vehicles with premium sound system, 9VS
- Quantity: 3
- 4 Nm
- Digital Sound System Control Module -J525-
- For vehicles with premium sound system, 9VS
- In the luggage compartment floor on the right rear side
- Removing and installing, for vehicles through MY 2020. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, PREMIUM SOUND SYSTEM (9VS), 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM, THROUGH MY 2020 .
- Removing and installing, for vehicles from MY 2021. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, PREMIUM SOUND SYSTEM (9VS), 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM, FROM MY 2021 .
- Bolt
- For vehicles with premium sound system, 9VS
- For vehicles through MY 2020, quantity: 2
- For vehicles from MY 2021, quantity: 4
- 6 Nm
- Bracket
- For vehicles with premium sound system, 9VS
- Subwoofer -R211-
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM .
- Nut
- Quantity: 4
- 4 Nm
- Digital Sound System Control Module -J525-
- For vehicles with advanced sound system, 8RF
- In the luggage compartment floor on the right rear side
- Removing and installing, for vehicles through MY 2020. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, ADVANCED SOUND SYSTEM (8RF), 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM, THROUGH MY 2020 .
- Removing and installing, for vehicles from MY 2021. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, ADVANCED SOUND SYSTEM (8RF), 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM, FROM MY 2021 .
- Bracket
- For vehicles with advanced sound system, 8RF
- Bolt
- For vehicles with advanced sound system, 8RF
- Quantity: 4
- 4 Nm
- Bracket
- For vehicles with advanced sound system, 8RF
- Nut
- For vehicles with advanced sound system, 8RF
- Quantity: 3
- 4 Nm
