Component Location Overview - Sound System, Basic Sound System (8RM)/Standard Sound System (9VD) Speaker/Premium Sound System (9VS), Through My 2020

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

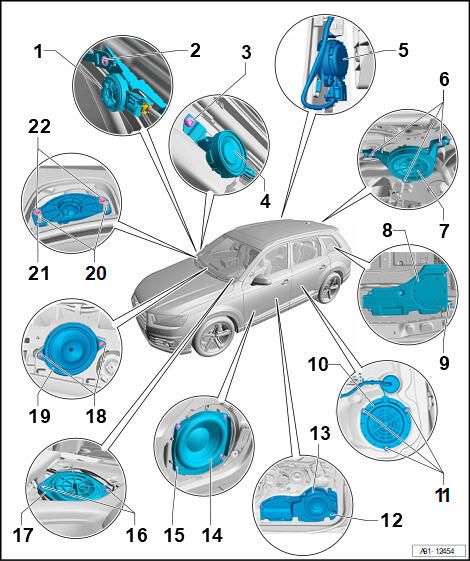

Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Premium Sound System, 9VS
- In the top of the A-pillars, at the height level of the exterior rearview mirror
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING (9VS), THROUGH MY 2020 .
Bolt
- Premium Sound System, 9VS
- For the tightening specification, refer to OVERVIEW - HEAD CURTAIN AIRBAG
Bolt
- Premium Sound System, 9VS
- 1.5 Nm
Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-
- Premium Sound System, 9VS
- In the A-pillars all the way to the top
- Removing and Installing. Refer to Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, REMOVING AND INSTALLING .
Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- In the B-pillars
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
Bolt
- Premium Sound System, 9VS
- Quantity: 3
- 3 Nm
Left Effects Speaker -R209- /Right Effects Speaker -R210-
- Premium Sound System, 9VS
- In the rear roof
- Removing and Installing. Refer to Left Effects Speaker -R209- /Right Effects Speaker -R210-, REMOVING AND INSTALLING, 9VS .
Subwoofer -R211-
- Standard Sound System, 9VD/Premium Sound System, 9VS
- In the luggage compartment
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, EXCLUDING VEHICLES WITH HIGH-VOLTAGE SYSTEM (0K3) AND 7-SEATER WITH 48V VEHICLE ELECTRICAL SYSTEM .
Nut
- Standard Sound System, 9VD/Premium Sound System, 9VS
- Quantity: 5
- 4 Nm
Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING, 8RM/9VD/9VS .
Bolt
- Quantity: 3
- 3 Nm
Bolt
- Premium Sound System, 9VS
- Quantity: 12
- 3 Nm
Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
- Premium Sound System, 9VS
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 9VS/8RF .
  Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-
- Premium Sound System, 9VS
- Removing and Installing. Refer to Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, REMOVING AND INSTALLING .
- From product improvement, Front Bass Speakers Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23- and Front Midrange Speakers Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104- are integrated into the Front Door Speaker Left Front Door Speaker -RX2- /Right Front Door Speaker -RX3-.
Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, 8RM/9VD
- Basic Sound System, 8RM/Standard Sound System, 9VD
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING, 8RM/9VD .
Bolt
- Basic Sound System, 8RM/Standard Sound System, 9VD
- Quantity: 6
- 3 Nm
Bolt
- Quantity: 2
- 1.5 Nm
Left Front Speaker -R2-
- Premium Sound System, 9VS
- Removing and Installing. Refer to Left Front Speaker -R2- /Right Front Speaker -R3-, REMOVING AND INSTALLING .
  - Left Front Treble Speaker -R20-
- Basic Sound System, 8RM/Standard Sound System, 9VD
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 8RM/9VD .
Bolt
- Quantity: 2
- 1.5 Nm
Center Speaker -R208-
- Standard Sound System, 9VD/Premium Sound System, 9VS
- Removing and Installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING .
  - Center Speaker 2 -R219-
- Premium Sound System, 9VS
- Removing and Installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING .
Centering Pins
- Basic Sound System, 8RM/Standard Sound System, 9VD
Right Front Speaker -R3-
- Premium Sound System, 9VS
- Removing and Installing. Refer to Left Front Speaker -R2- /Right Front Speaker -R3-, REMOVING AND INSTALLING .
  - Right Front Treble Speaker -R22-
- Basic Sound System, 8RM/Standard Sound System, 9VD
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 8RM/9VD .
Bolt
- Quantity: 2
- 1.5 Nm
