Component Location Overview - Rear Seat Entertainment System
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

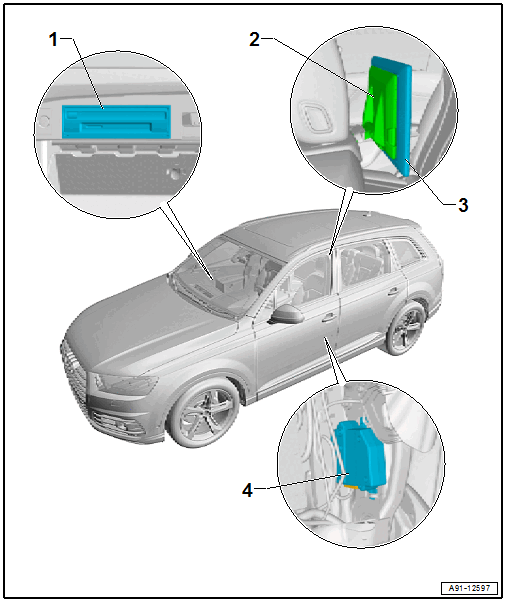

- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Multimedia Display Unit 3 Bracket -R315- / Multimedia Display Unit 4 Bracket -R316-
- On the left/right front seat backrest
- Removing and Installing. Refer to Multimedia Display Unit 3 Bracket -R315- / MULTIMEDIA DISPLAY UNIT 4 BRACKET Multimedia Display Unit 4 Bracket -R316-, REMOVING AND INSTALLING .
- Multimedia Display Unit 3 -Y31- / Multimedia Display Unit 4 -Y32-
- On the Multimedia Display Unit 3 Bracket -R315- / Multimedia Display Unit 4 Bracket -R316-
- Removing and Installing. Refer to Multimedia Display Unit 3 -Y31- / Multimedia Display Unit 4 -Y32-, REMOVING AND INSTALLING .
- Left Rear Information Display Control Head Control Module -J648- / Right Rear Information Display Control Head Control Module -J649-
- On the right/left front seat backrest frame
- Wiring Diagram
- Removing and Installing. Refer to Left Rear Information Display Control Head Control Module -J648- /Right Rear Information Display Control Head Control Module -J649-, REMOVING AND INSTALLING .
