Telematics Interface Control Module -J1221-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

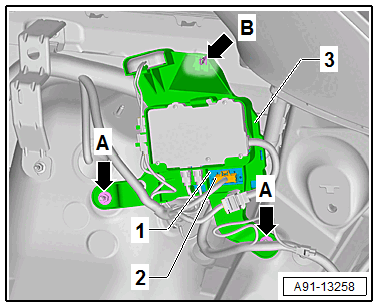

-- Release and disconnect the connector -2- on the Telematics Interface Control Module -J1221- -1-.
-- Remove the nuts -A arrows- and remove the bracket -3- from the body -arrow B- and pivot outward.

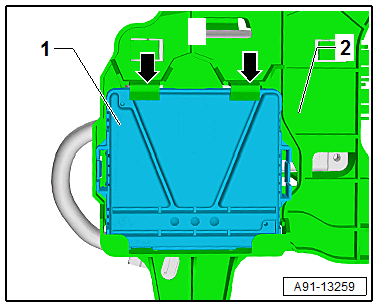

-- Release the tabs -arrows- on the bracket and remove the Telematics Interface Control Module -J1221- -1- from the bracket -2-.
