Radio Data Transmission Antennas, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

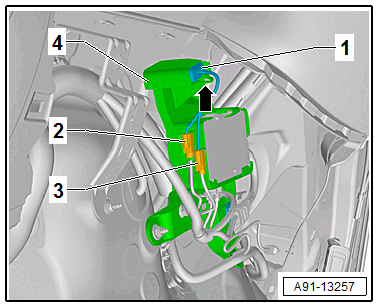

-- Unclip the connectors -2 and 3- from the bracket -4-.
-- Release and disconnect the connectors -2 and 3-.
-- Release the tab -arrow- on the bracket, remove the radio data transmission antennas -1- from the bracket -4-.
