Overview - MULTIFUNCTION Steering Wheel, 4-Spoke Steering Wheel

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

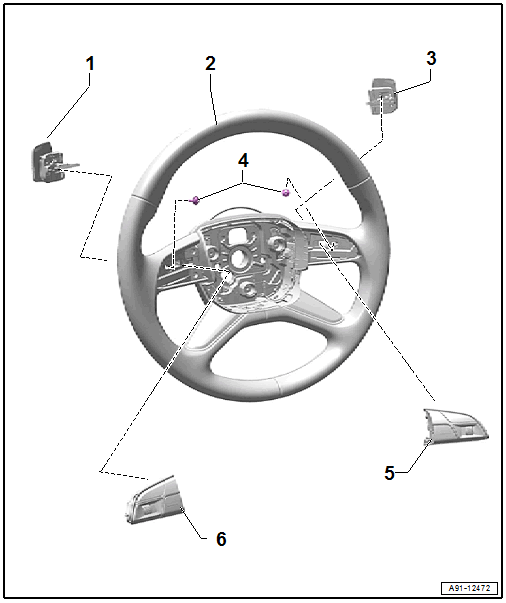

GWWA91-12472Courtesy of AUDI OF AMERICA, LLC
  1. Tiptronic Downshift Button -E480-
  2. 4-Spoke Steering Wheel
  3. Tiptronic Upshift Button -E479-
  4. Bolt
    • 1 Nm
  5. Right Multifunction Buttons on Steering Wheel -E441-
  6. Left Multifunction Buttons on Steering Wheel -E440-
