Driver Volume Control -E67-, REMOVING AND INSTALLING: Notes
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

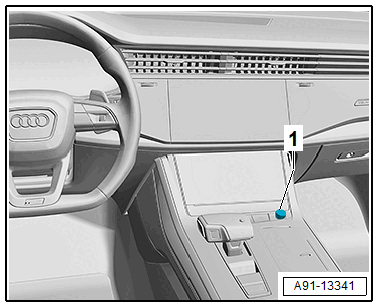

The Driver Volume Control -E67- -1- is installed in the front center console display cover.
If the Driver Volume Control -E67- is being replaced, the following procedure applies:
-- Connecting and switching on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Body
- Electrical Equipment
- 01 - OBD-capable systems
- 005F - Information Electronics Control Module 1 - J794 (MIB 2+) or 005F - Information Electronics Control Module 1 - J794 (MIB 3)
- 005F - Information Electronics Control Module 1, functions
- 0693 - Driver Volume Control -E67-, replacing
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
