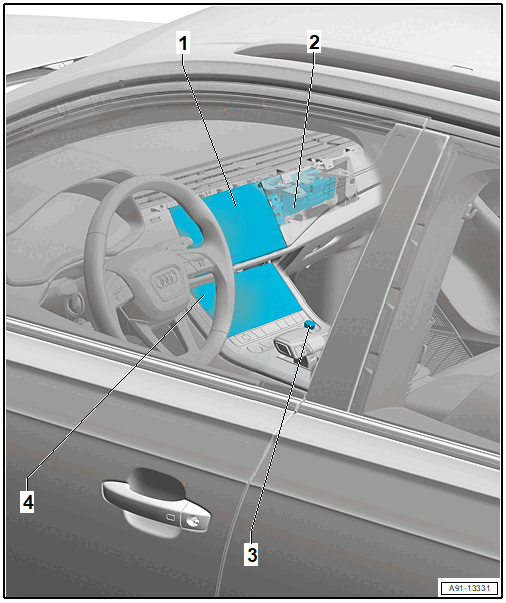

Component Location Overview - Infotainment System, From Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to Front Information Display Control Head -J685-, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Screw tightening specification: 3 Nm
- Information Electronics Control Module 1 -J794-
- Behind the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Screw tightening specification: 3 Nm
- Driver Volume Control -E67-
- In the front center console display cover
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Front Information Display Control Head 2 -J1060-
- In the front center console
- Removing and Installing. Refer to Front Information Display Control Head 2 -J1060-, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Bolt tightening specification: 4 Nm
