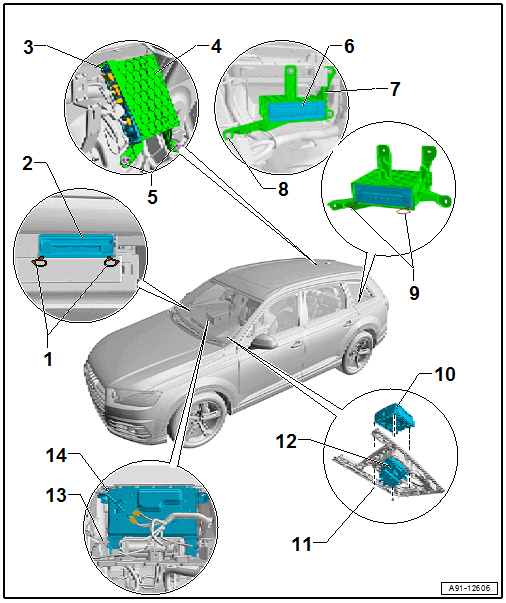

Component Location Overview - Infotainment System, Before Product Improvement
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Radio Removal Tool:T10057
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- TV Tuner -R78-
- In rear right of luggage compartment
- See the appropriate Service Information
- Bracket
- Nut
- Quantity: 2
- 3 Nm
- DVD Changer -R161-
- In the luggage compartment on the left rear side
- Removing and Installing. Refer to DVD CHANGER, REMOVING AND INSTALLING .
- Bracket
- Nut
- Quantity: 4
- 4 Nm
- Radio Removal Tool:T10057
- Multimedia System Control Head -E380-
- In the center console
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .
- With Touchpad Control Module -J929-
- Touchpad Control Module - J929-, Replacing. Refer to Touchpad Control Module -J929-, REMOVING AND INSTALLING, UJ1 .
- Control Knob Cover, Replacing. Refer to CONTROL KNOB COVER, REPLACING .
- Bolt
- Quantity: 4
- 1 Nm
- Driver Volume Control -E67-
- In the center console insert
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 3 Nm
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to Front Information Display Control Head -J685-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
