External Audio Source Connection -R199-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Release and disconnect the connectors on the External Audio Source Connection -R199-.

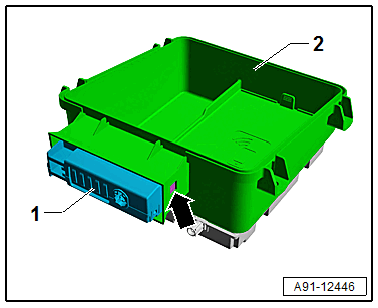

-- Press the tab -arrow- on the External Audio Source Connection -R199- -1- and remove the External Audio Source Connection -R199- -1- from the storage compartment -2-.
