Removing and Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

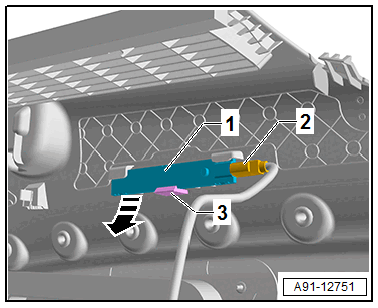

-- Release and disconnect the connector -2-.
-- Release the retaining tab -3- on the luggage compartment side trim panel.
-- Remove the antenna -1- from the luggage compartment side trim panel in the -direction of the arrow-.
Emergency Call Module Antenna -R263-, Installing
Install in reverse order of removal.
