Component Location Overview - Antenna Systems, Before Product Improvement, Excluding RUSSIA

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

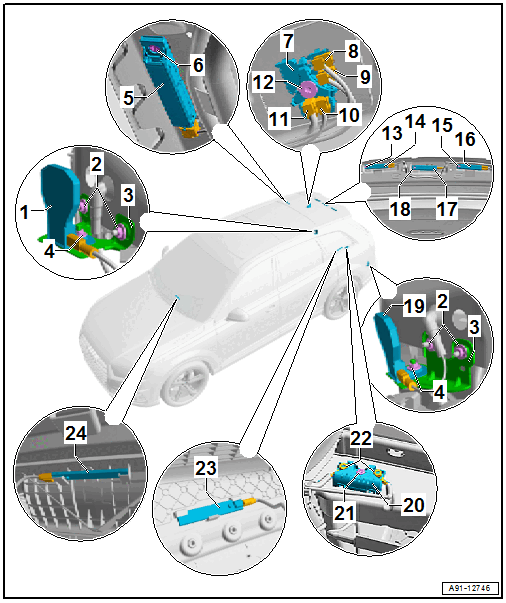

GWWA91-12746Courtesy of AUDI OF AMERICA, LLC
  1. Telephone Antenna -R65-
  2. Nut
    • Quantity: 2 on each side
    • 3.5 Nm
  3. Bracket
  4. Nut
    • Quantity: 1 on each side
    • 3.5 Nm
  5. Antenna Amplifier 3 -R112-
  6. Bolt
    • 3 Nm
  7. Roof Antenna -R216-
    • Depending on vehicle equipment with the following integrated components:
      • GPS Antenna -R50-
      • Telephone Antenna -R65-, 9ZE and IV0 and EL0 and IW0/IW3/IW5.
      • Satellite Tuner Antenna -R172-, ER3 and QV3
      • Auxiliary Heater Antenna -R182-, ER1/ER2 and 9M9
      • LTE Antenna 1 -R297-, EL3 and IV0
      • Emergency Call Module Antenna 2 -R322-, IV1 through IV8
    • Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
  8. GPS Connection from GPS Antenna -R50-
  9. SAT connection from Satellite Tuner Antenna -R172-
    • ER3 and QV3
  10. GSM Connection from Telephone Antenna -R65-
    • 9ZE and IV0 and EL0 and IW0/IW3/IW5.

      - LTE connection from LTE Antenna 1 -R297-

    • EL3 and IV0

      - LTE connection from Emergency Call Module Antenna 2 -R322-

    • IV1 through IV8
  11. RC Connection from Auxiliary Heater Antenna -R182-
    • ER1/ER2 and 9M9
  12. Bolt
    • 5 Nm
  13. Bolt
    • 3 Nm
  14. Antenna Amplifier 2 -R111-
  15. Bolt
    • 3 Nm
  16. Antenna Amplifier -R24-
  17. TV Antenna Amplifier 1 -R82-
  18. Bolt
    • 3 Nm
  19. LTE Antenna 2 -R306-
  20. Windshield Antenna Suppression Filter -C18-
  21. Bolt
    • 4 Nm
  22. Nut
    • Quantity: 2
    • 9 Nm
  23. Emergency Call Module Antenna -R263-
  24. Emergency Call Module Antenna -R263-
