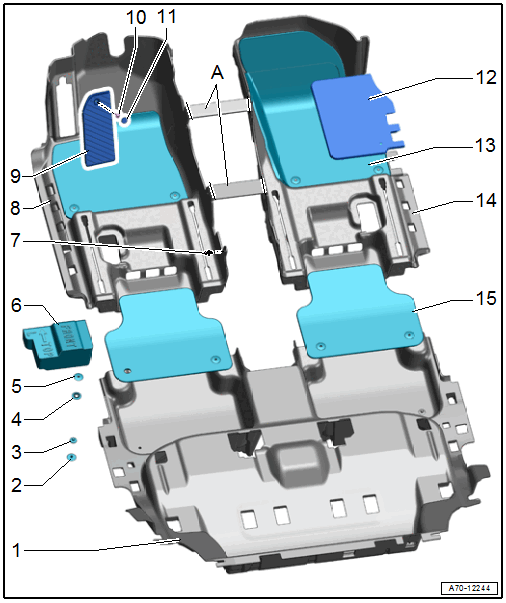

Overview - Footrest And Carpet
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Carpet
- One piece
- Removing and Installing. Refer to REAR CARPET, REMOVING AND INSTALLING .
- Bracket
- for floor mat
- Quantity: 4 each on front and rear
- Insert from below into the carpet
- Cap
- for floor mat
- Quantity: 4 each on front and rear
- Unclip using the Pry Lever:80-200
- Press into the bracket until it engages audibly
- Bracket
- for floor mat
- Quantity: 4 each on front and rear
- Insert from below into the floor mat
- Cap
- for floor mat
- Quantity: 4 each on front and rear
- Unclip using the Pry Lever:80-200
- Press into the bracket until it clicks into place
- Filler Piece
- Quantity: 8
- Note the installation position
- Expanding Clip
- Quantity: 3 on the left and right side
- Front Carpet
- is one piece as replacement part; remove both connecting pieces -A- at the perforation after assembly
- Removing and Installing. Refer to FRONT CARPET, REMOVING AND INSTALLING .
- Footrest
- Engage in the relay and fuse panel
- Removing and Installing. Refer to FOOTREST, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Cap
- Battery cover
- Floor Mat
- Quantity: 2
- Front Carpet
- is one piece as replacement part; remove both connecting pieces -A- at the perforation after assembly
- Removing and Installing. Refer to FRONT CARPET, REMOVING AND INSTALLING .
- Floor Mat
- Quantity: 2
