Overview - D-Pillar Trim Panel

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

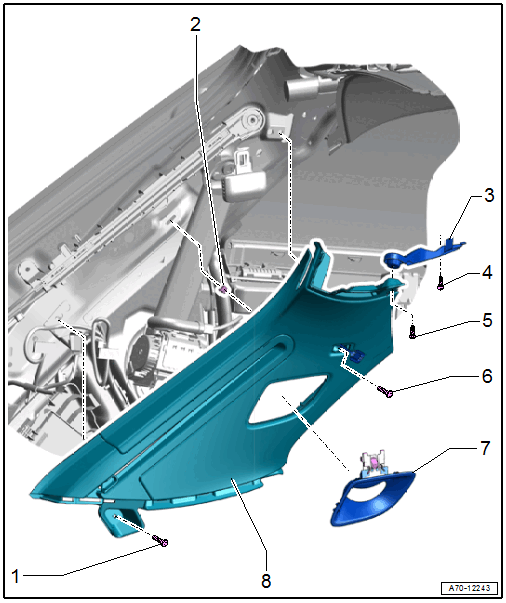

Fig 1: Exploded View Of D-Pillar Trim Panel

Courtesy of AUDI

Bolt
- 2 Nm
Clip
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
Bracket
- for the D-pillar trim
- Insert in the mounting points on the roof
- Removing and Installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Bolt
- 2 Nm
Bolt
- 3.5 Nm
Rear Seat Belt Guide
- Only 7 seats
- Removing and Installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
D-Pillar Trim Panel
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
- Removing and Installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
