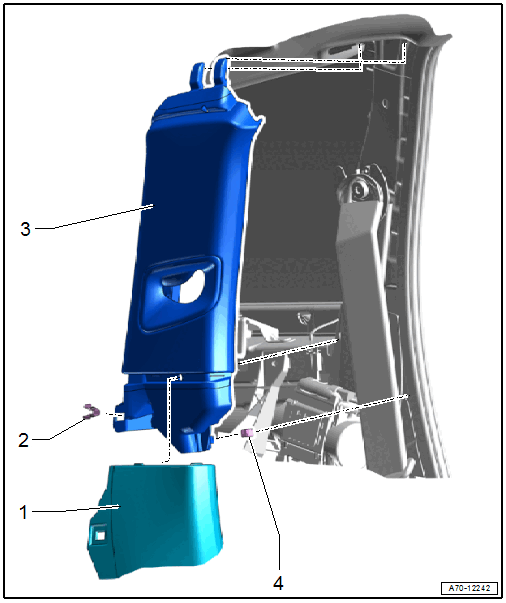

Overview - C-Pillar Trim Panel
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Sill Panel
- Press on until it engages audibly
- Stretch the door seal lip over.
- Removing and Installing. Refer to REAR SILL PANEL, REMOVING AND INSTALLING .
- Clip
- Insert in the trim panel
- Replace any damaged or deformed clips
- C-Pillar Trim Panel
- Insert in the mounting points on the roof at the top
- Press on until it engages audibly
- Stretch the door seal lip over.
- Removing and Installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
