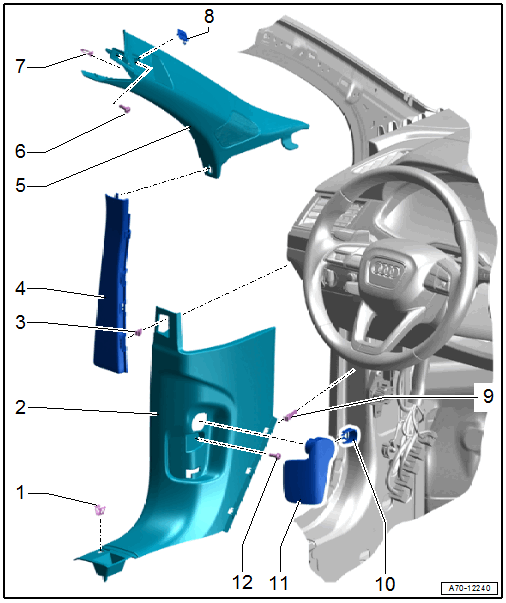

Overview - A-Pillar Trim Panel
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- Insert in the trim panel
- Replace damaged or deformed clips
- A-Pillar Lower Trim Panel
- Stretch the door seal lip over.
- Removing and Installing. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .
- Clip
- Insert into the gap cover
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- A-Pillar Gap Cover
- Hook into the A-pillar upper trim panel and clip into the A-pillar
- Stretch the door seal lip over.
- Removing and Installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- A-Pillar Upper Trim Panel
- Press on until it engages audibly
- Stretch the door seal lip over.
- Removing and Installing. Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Clip
- With hooks
- Insert in the trim panel
- Cap
- With the "Airbag" symbol
- Unclip using flat-head screwdriver
- Clip
- Insert in the trim panel
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- Clamp
- Press in completely, it must engage.
- Operating Lever Handle
- For the latch
- Only driver side
- Removing and installing. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
- Bolt
- Only driver side
- 2.5 Nm
