C-Pillar Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the rear sill panel. Refer to REAR SILL PANEL, REMOVING AND INSTALLING .

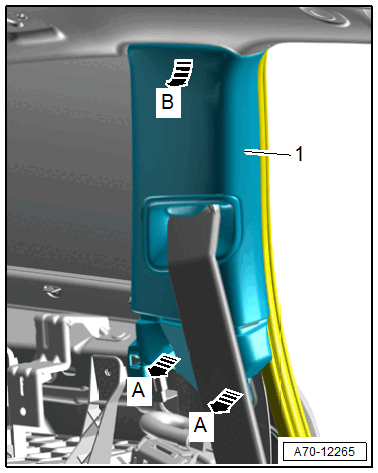

-- Free up the C-pillar trim panel -1- near the door seal, disengage it from the front of the C-pillar and unclip it from the C-pillar using the :80-200 -A arrows-.
-- Remove the C-pillar trim panel from the mount on the body -arrow B- by moving the trim panel inward and pulling it downward at the same time.
-- Remove the C-pillar trim panel with the seat belt webbing still threaded through it.
- To replace the C-pillar trim panel, remove the rear belt end fitting. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
