Overview - Roof End Strip
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

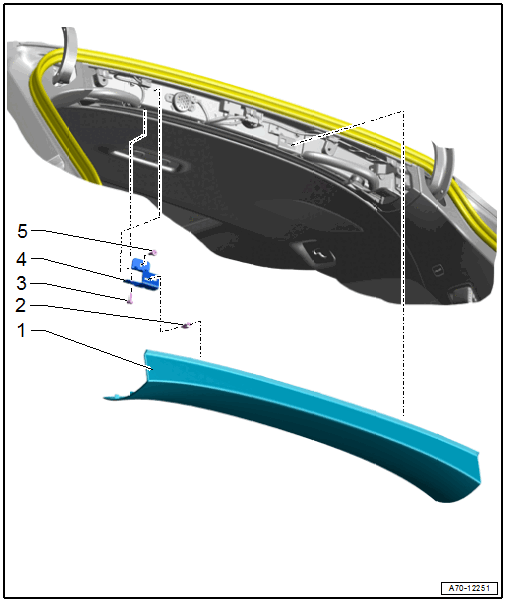

- Roof End Strip
- Insert in the D-pillar trim panels and press on it until it audibly engages.
- Stretch the lip of the rear lid seal over
- Removing and Installing. Refer to ROOF END STRIP, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- Insert in the roof end strip
- Remove the clips that are still in the body mounting points using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- Bolts
- 3.5 Nm
- Bracket
- Quantity: 2
- Bolts
- 3.5 Nm
