Headliner, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .

-- Lower the headliner. Refer to HEADLINER, LOWERING .

-- Move the front seats into the deepest and most forward position and position the backrest as far toward the front as it will go.

-- Fold the rear seat backrests forward.

-- Equipped on some models: fold in the third row backrests.

A second technician is required to remove the headliner.

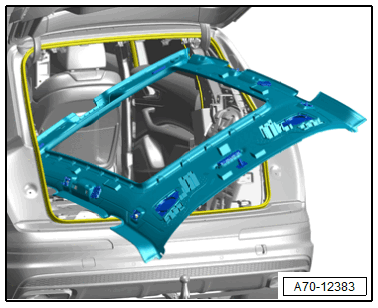

-- Lower the headliner on the left side of the vehicle.

Courtesy of AUDI

CAUTION:

Increased risk of damaging the headliner when removing due to incorrect handling.

- Make sure that all the installation components in the procedure description are removed.

- Guide the headliner using care and with the help of an additional technician to the lid opening.

-- Move out the headliner by turning correspondingly and lower it carefully through the lid opening.

-- To do so if necessary bend the headliner on the edges lightly and guide it past the constrictions.
