Spare Tire Well Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Equipped on some models: remove the third row bench seat. Refer to THIRD ROW SEAT, REMOVING AND INSTALLING .
-- Remove the tool box and straps.
-- Equipped on some models: remove the spare tire.
-- Remove the luggage compartment floor bracket. Refer to LUGGAGE COMPARTMENT CARPET BRACKET, REMOVING AND INSTALLING .
-- Remove the subwoofer. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
-- Remove the amplifier with bracket. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
-- Equipped on some models: remove the 48V battery. Refer to BATTERY, REMOVING AND INSTALLING .

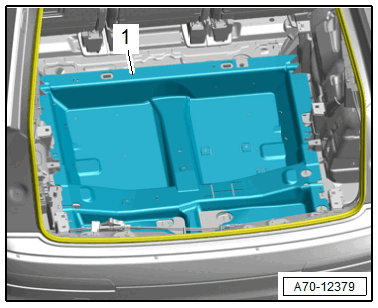

-- Disengage the spare tire well trim -1- and remove toward the rear.
-- Versions with 7 seats: disengage the spare tire well trim and pull out under the seat.
