Rear Lid Lower Trim Panel, Removing And Installing: Removing

-- Remove the rear lid closing button. Refer to REAR LID REMOTE RELEASE BUTTON -E233-, REMOVING AND INSTALLING .

-- Remove the rear lid lamp. Refer to COMPONENT LOCATION OVERVIEW - LUGGAGE COMPARTMENT LAMPS .

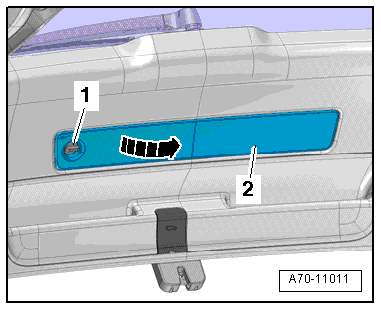

-- Turn the quick release -1- 90° counter-clockwise and move the emergency triangle cover -2- to the side -arrow-.

Fig 1: Removing Emergency Triangle Cover

Courtesy of AUDI

-- Remove the emergency triangle.

-- Disengage the cover on the lower trim panel and remove it.

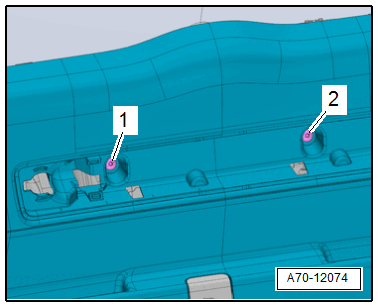

-- Remove the bolts -1 and 2-.

Courtesy of AUDI

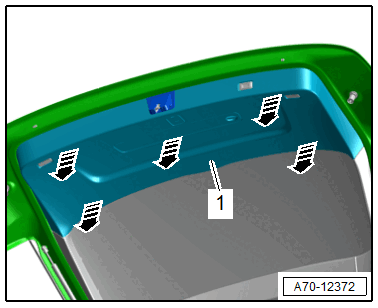

-- Grasp the trim panel -1- with a hand by reaching into the installation opening for the rear lid lamp and pull the trim panel off of the rear lid with a jerk -arrows-.

Courtesy of AUDI

-- Unclip the rest of the trim panel clips using the :80 - 200  and remove the trim panel.

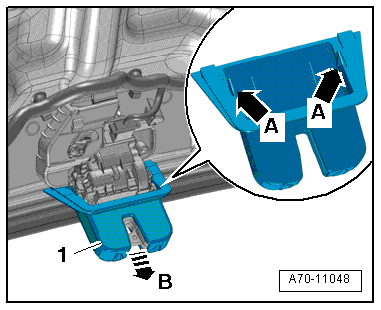

-- If necessary, release the retaining tabs -A arrows- with a screwdriver, and remove the rear lid latch trim panel -1- -arrow B-.

Fig 2: Remove Lower Rear Lid Trim Panel

Courtesy of AUDI
