Rail, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
GWWA70-12384Courtesy of AUDI

-- Remove the luggage fastening strap or the telescopic luggage bar.

-- Equipped on some models, front passenger side: remove the spare tire bracket. Refer to SPARE TIRE CARRIER, REMOVING AND INSTALLING .

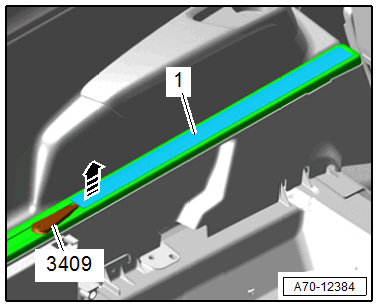

-- Versions with 7 seats: unclip the rail cover -1- with the : 3409  and remove it -arrow-.

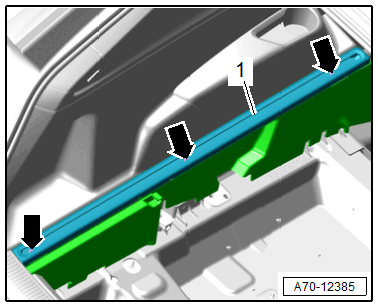

-- Remove the bolts -arrows- and remove the rail -1-.

GWWA70-12385Courtesy of AUDI
