Luggage Compartment Carpet Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Front passenger side: if installed, remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, UPRIGHT SPARE TIRE .

-- Remove the luggage compartment floor trim panel. Refer to LUGGAGE COMPARTMENT FLOOR TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the tie down. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Equipped on some models: remove the rail. Refer to RAIL, REMOVING AND INSTALLING .

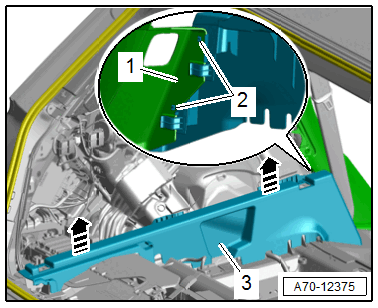

-- Lift up the luggage compartment floor support -3-, disengage the tabs -2- on the support and remove the sill panel strip -1-.

Courtesy of AUDI

-- Disengage the luggage compartment floor support upward -arrows- and remove toward the rear.
