Lock Carrier Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment floor.
-- Vehicle with high-voltage system: remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, VEHICLE WITH HIGH-VOLTAGE SYSTEM .
-- Versions with upright spare tire: remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, UPRIGHT SPARE TIRE .
-- Equipped on some models: remove the emergency triangle.

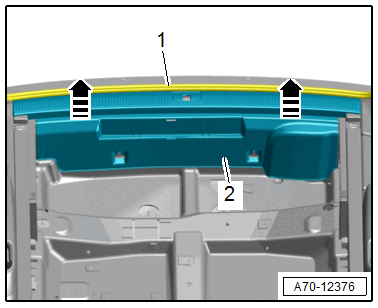

-- Free up the lock carrier trim panel near the rear lid seal -1-.
-- Grip the trim panel -2- by hand and carefully pull vertically upward using a jerking motion -arrows-.
-- Disconnect the connector and remove the lock carrier trim panel.
