Windshield Projection (Head-Up Display) Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Risk of damaging the trim.
- Proceed carefully when removing. The :T10383/1 must be positioned at the trim retainers.

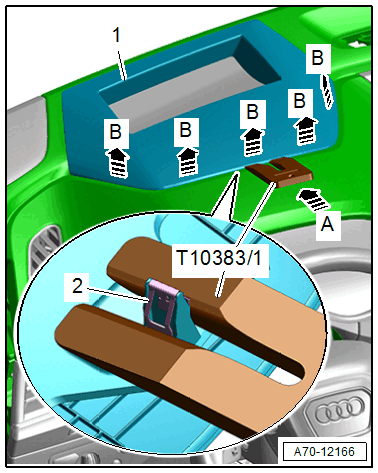

-- Unclip the windshield projection trim -1- using the :T10383/1 -B arrows-.
-- To do so, position the :T10383/1 at the retainer -2- and slide it in direction of -arrow A- until the retainer disengages from the mount.
-- Unclip the rest of the retainers and remove the windshield projection trim -1- toward the rear.
