MMI Screen Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

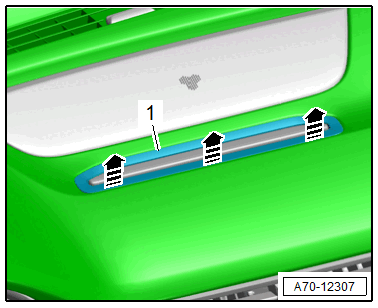

GWWA70-12307Courtesy of AUDI

-- Unclip the MMI screen cover -1- using the :T10383/1  -arrows-.

-- Disengage the MMI screen cover from the instrument panel and remove it.
