Display Control Head Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the steering wheel as far up and backward as possible to be able to use the entire steering column adjustment range.
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Remove the front passenger side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

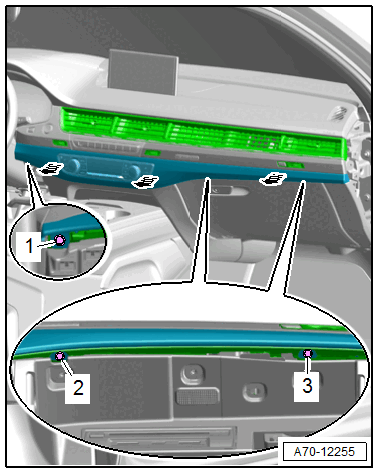

-- Remove the bolt -1-.
-- Open the glove compartment cover and remove the screws -2 and 3-.
-- Unclip the trim with the A/C display control head using the :T10383/1 -arrows-.
-- Disconnect the connectors and remove the trim with the A/C display control head.
