Access/Start Authorization Switch Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front passenger side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Remove the A/C display control head trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .

-- Remove the instrument panel decorative trim on the front passenger side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE, BEFORE PRODUCT IMPROVEMENT .

-- Remove the instrument panel decorative trim in the center. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, CENTER, BEFORE PRODUCT IMPROVEMENT .

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

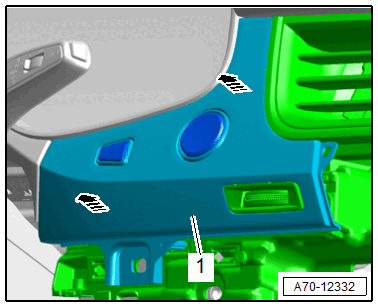

-- Unclip the access/start authorization switch trim -1- using the : T10383/1 -arrow-.

Courtesy of AUDI

-- Disconnect the connectors and remove the access/start authorization switch trim.
