Window Frame Trim Panel, Removing And Installing: Installing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

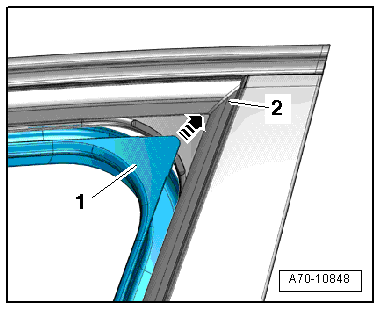

Fig 1: Installing Window Frame Trim -1- Into Window Guide -2- Starting On Inside At Bottom -Arrow-

Courtesy of AUDI

-- Insert window frame trim panel -1- at the top back of the window guide -2- -arrow-.

-- Install window frame trim panel -2- along the entire length of the window guide.

Courtesy of AUDI

-- Remove the protective film from the adhesive pads on the new part.

-- Push the trim panel firmly against the door in the adhesive pad area -1, 3-

TIP:

Ignore the -arrows-.

Further installation is the reverse order of removal.
