Midrange Speaker Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Place the door trim panel on a soft and clean surface.
-- Remove the insulation mat.
-- If equipped, disconnect the connector.
CAUTION:
Risk of damaging the door trim panel.
- Be extremely careful when drilling.

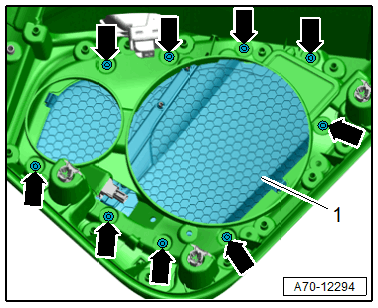

-- Using a 6.5 mm drill bit, drill out the speaker trim attachment points -arrows- from the door trim panel, just until the speaker trim begins to loosen from the door trim panel.
-- Carefully loosen the attachment points one after another and remove the speaker trim -1- from the door trim panel.
