RIGHT SEAL, REPLACING, FINAL DRIVE 09R "quattro ultra"

Special tools and workshop equipment required

• Puller - Unit Injector:T10055
  Fig 1: Identifying Puller T10055

  Courtesy of AUDI
• Assembly Tool:T10356/2
  Fig 2: Identifying Subframe Bushing Assembly Tool Kit

  Courtesy of AUDI

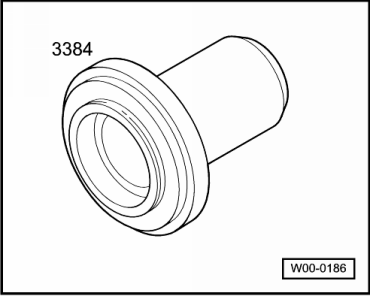

• Seal Installer - LH Flange Shaft Seal:3384

  Courtesy of AUDI

• Thrust Piece:T10233
  Fig 3: Identifying Thrust Piece T10233

  Courtesy of AUDI
• Circlip Pliers:VAS 5503A

  Courtesy of AUDI

• -1- Internal Puller:VAS 251 613
  Fig 4: Identifying Kukko Puller

  Courtesy of AUDI
• -4- Counter Support:VAS 251 623
• Sealing Grease:G 052 128 A1

• The rear final drive is removed. Refer to FINAL DRIVE, REMOVING AND INSTALLING .

-- Follow all general repair information. Refer to REPAIR INFORMATION .

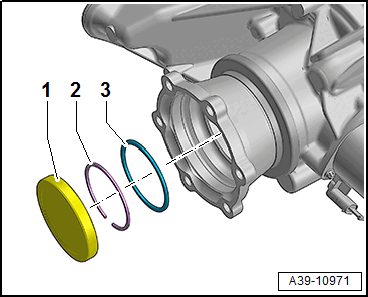

-- Drive a hole centered into the cap -1- and pry out with a screwdriver.

Courtesy of AUDI

-- Remove the circlip -2- using the Circlip Pliers:VAS 5503A  .

-- Remove the shim -3-.

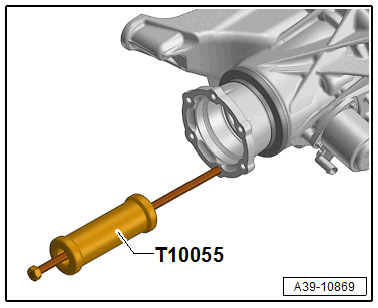

-- Remove the right flange shaft using the Puller - Unit Injector:T10055  .

Courtesy of AUDI

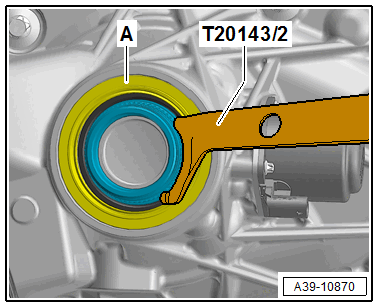

-- Pry out the shaft seal -A- using the Puller - Crankshaft/Power Steering Seal:T20143/2  .

Courtesy of AUDI

Installing

Courtesy of AUDI

-- Coat outer edge of the seal with gear oil.

-- Fill the space between the sealing/dust lip halfway with Sealing Grease:G 052 128 A1  .

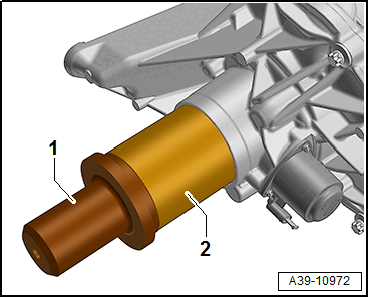

-- Install the new shaft seal to the >>installed dimension<< using the Assembly Tool:T10356/2  -2- and Seal Installer - LH Flange Shaft Seal:3384  -1- ; do not tilt the shaft seal while doing so.

• Installed dimension: 7 mm ± 0.2 under housing outer edge

-- Push on the flange shaft.

Courtesy of AUDI

-- Mount the shim -3-.

-- Install the new circlip -2-, being careful not to stretch it.

Tip:

The circlip -2- can only be inserted into the stub shaft groove when the flange shaft is pretensioned.

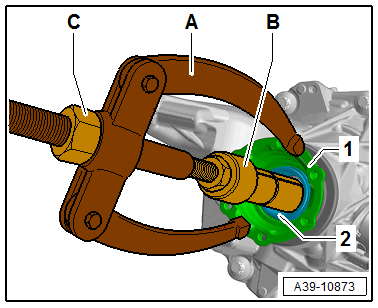

-- Insert the Internal Puller -B- into the stub shaft -2- and slightly tension it.

Courtesy of AUDI

-- Attach the Counter Support -A-.

-- Pretension the flange shaft -1- by tightening the nut -C- slightly.

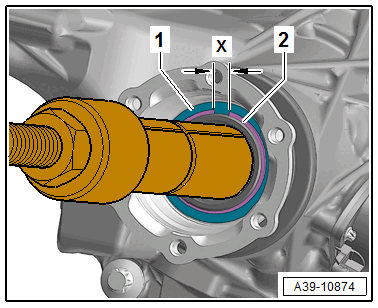

-- Using two screwdrivers, now press on the shim -1- and at the same time, push the circlip -2- into the stub shaft groove.

Courtesy of AUDI

Tip:

The circlip -2- may be driven in by lightly tapping with a hammer until the dimension -x- is reached.

• Dimension -x- may be a maximum of 6 mm.

-- Drive in the new cap with the Thrust Piece:T10233  all the way.

Courtesy of AUDI

-- Install the rear final drive. Refer to the appropriate Service Information. .

-- Check the rear final drive gear oil. Refer to GEAR OIL, CHECKING LEVEL .
