Input Shaft Seal, Replacing, 0DG: Removing

Fig 1: Exhaust System Clamping Sleeves

Courtesy of AUDI

• Rear final drive installed.

-- Disconnect the exhaust system at the clamping sleeves -1- and -2-.

-- Remove the rear section of the exhaust system. Refer to OVERVIEW - MUFFLER - 2.0L , OVERVIEW - MUFFLER - 3.0L .

Tip:

• A second technician is needed to help remove the rear section of the exhaust system.

-- Remove the driveshaft from the rear final drive. Refer to DRIVE SHAFT, REMOVING FROM REAR FINAL DRIVE AND INSTALLING .

Fig 2: Identifying Mark Position Of Driveshaft Flange To Rear Final Drive

Courtesy of AUDI

-- Guide the driveshaft between the fuel tank and the subframe downward toward the rear and attach it on the side.

-- Remove the High Temperature Grease in the flange/driveshaft.

Fig 3: Identifying Circlip, Removal/Installation

Courtesy of AUDI

-- Remove the circlip -arrow-.

-- Mark the position of the flange/driveshaft -B- on the pinion -A- -arrow-.

Fig 4: Locating Mark Position Of Flange/Driveshaft To Pinion

Courtesy of AUDI

• This marking -arrow- is needed so the colored dot -C- on the outer flange remains in its original position.
• This ensures the imbalance in the rear final drive will be as small as possible.

-- Remove the flange/driveshaft.

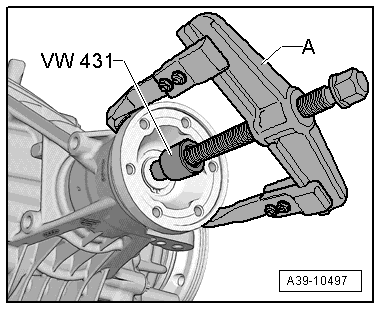

Fig 5: Two-Arm Puller Kukko 20-10

Courtesy of AUDI

A -  For example the Puller - Kukko 2-Arm - 70-180mm:Kukko 20/10

-- Remove the O-ring -1-.

Courtesy of AUDI

-- Place the oil drainer underneath.

Fig 6: Puncturing Metal Cover Using Scriber

Courtesy of AUDI

-- Knock through the metal ledge of the shaft seal -A-, for example, with a scriber -B- in the -direction of the arrow-.

-- Then install a bolt -arrow- in this shaft seal opening -A-.

Fig 7: Identifying Screw On Metal Cover

Courtesy of AUDI

-- Remove the flange/driveshaft seal -A- in the -direction of the arrow-.

Fig 8: Identifying Flange/ Driveshaft Seal, Removal

Courtesy of AUDI

B -  Bolt
