Component Location Overview - Seals 0DG

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

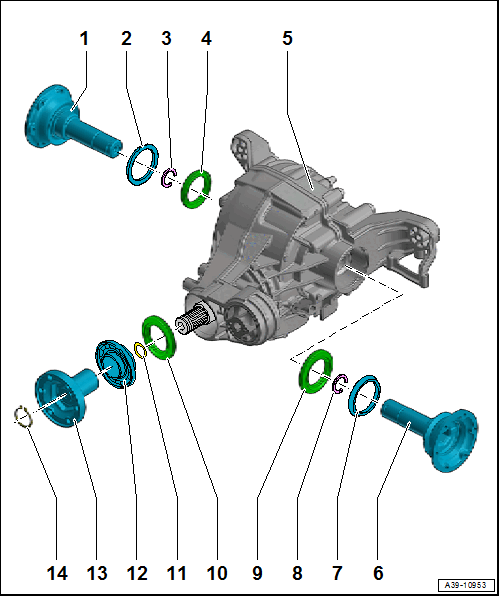

Fig 1: Exploded View Of Rear Final Drive Seals (0DG)

Courtesy of AUDI

Right Flange Shaft
- Removing and Installing. Refer to RIGHT SEAL, REPLACING .
- Right and left flange shaft are identical
Right Protective Ring
- Replacing. Refer to FLANGE SHAFT PROTECTIVE RING, REPLACING .
Circlip
- Always replace.
Right Seal
- Replacing. Refer to RIGHT SEAL, REPLACING .
Rear Final Drive
- Refer to FINAL DRIVE, REMOVING AND INSTALLING
Left Flange Shaft
- Removing and Installing. Refer to LEFT SEAL, REPLACING .
- Right and left flange shaft are identical
Left Protective Ring
- Replacing. Refer to FLANGE/DRIVESHAFT PROTECTIVE RING, REPLACING .
Circlip
- Always replace.
Left Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
Input Shaft Seal
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
O-Ring
- Always replace.
Protective Ring on Flange/Driveshaft
- Replacing. Refer to FLANGE/DRIVESHAFT PROTECTIVE RING, REPLACING .
Flange/Driveshaft
- Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING .
Circlip
