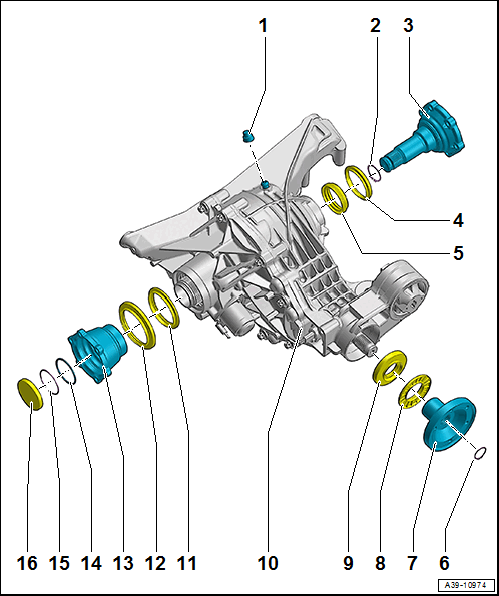

COMPONENT LOCATION OVERVIEW - SEALS, 09R "quattro ultra"
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bleed Cap
- Circlip
- Always replace.
- Left Flange Shaft
- Removing and Installing. Refer to LEFT SEAL, REPLACING, 0DB, 0D2, 0G2, 0DG, 0B0 "quattro ultra", 09R "quattro ultra" .
- Left Protective Ring
- Replacing. Refer to FLANGE SHAFT PROTECTIVE RING, REPLACING .
- Left Seal
- Replacing. Refer to LEFT SEAL, REPLACING, 0DB, 0D2, 0G2, 0DG, 0B0 "quattro ultra", 09R "quattro ultra" .
- Circlip
- Flange/Driveshaft
- Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING .
- Protective Ring on Flange/Driveshaft
- Replacing. Refer to FLANGE/DRIVESHAFT PROTECTIVE RING, REPLACING .
- Input Shaft Seal
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
- Rear Final Drive
- Refer to FINAL DRIVE, REMOVING AND INSTALLING
- Right Seal
- Replacing. Refer to RIGHT SEAL, REPLACING, FINAL DRIVE 0B0 "quattro ultra" .
- Right Protective Ring
- Replacing. Refer to FLANGE SHAFT PROTECTIVE RING, REPLACING .
- Right Flange Shaft
- Removing and Installing. Refer to RIGHT SEAL, REPLACING, FINAL DRIVE 0B0 "quattro ultra" .
- Shim
- Circlip
- Always replace.
- Cap
