Gear Oil Level, Checking, 0DB, 0D2 And 0G1 / 0G2
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Drip Tray

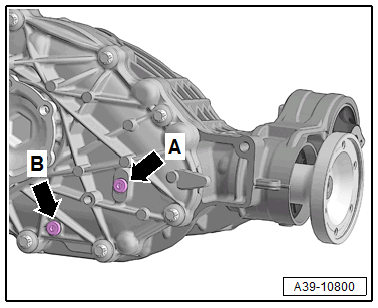

-- Remove the oil filler plug -arrow A- to check the gear oil.
The oil level is correct when the rear final drive is filled up to the lower edge of the oil fill hole.
- Transmission fluid specification. Refer to CAPACITIES .
-- Install the plug -arrow A- and tighten it. Tightening specification Refer to COMPONENT LOCATION OVERVIEW - DRAIN AND CHECK PLUGS, 0DB, 0D2 AND 0G1 / 0G2 .
