Driveshaft With Outer Axial Support

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

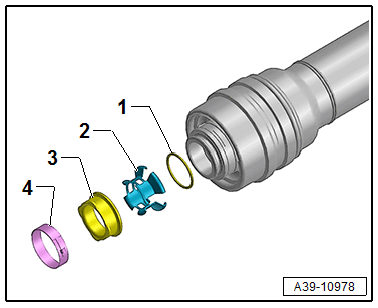

Fig 1: Exploded View Of Driveshaft With Outer Axial Support
GWWA39-10978Courtesy of AUDI
  1. O-Ring
    • Replace
  2. Axial securing
    • Replace
  3. Distance ring
    • Replace
  4. Clamp
    • Replace
