Bonded Rubber Bushing, Removing And Installing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hydraulic Press - Ball Joint Assembly Tools:T10254

Fig 1: Hydraulic Press - Ball Joint Assembly Tools T10254
Courtesy of AUDI
Assembly Tool:T40342

Courtesy of AUDI
Hydraulic Press:VAS 6178

Fig 2: Identifying Hydraulic Press VAS6178
Courtesy of AUDI
Pneumatic/Hydraulic Foot Pump:VAS 6179

Fig 3: Identifying Pneumatic/Hydraulic Foot Pump VAS6179
Courtesy of AUDI
Installation lubricant. Refer to the appropriate Electronic Parts Information.

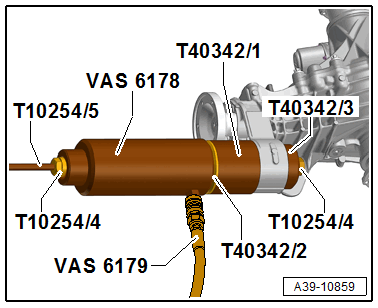

Bonded Rubber Bushing, Removing

Courtesy of AUDI

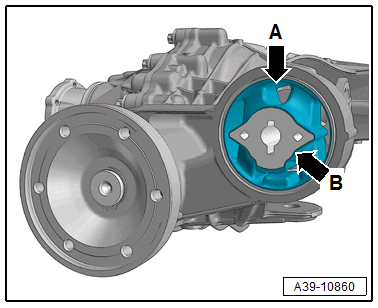

Bonded Rubber Bushing Installation Position

Fig 4: Bonded Rubber Bushing Installation Position

Courtesy of AUDI

The trapezoid-shaped hole in the bonded rubber bushing -arrow A- faces upward.
The rubber-coated side of the metal insert -arrow B- faces toward the driveshaft.

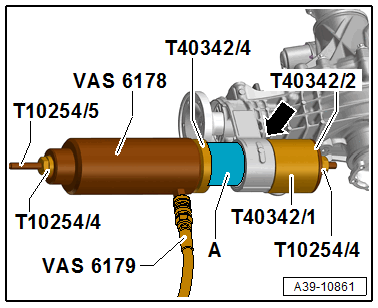

Bonded Rubber Bushing -A-, Installing

Courtesy of AUDI

Pay attention to the installation position of the bonded rubber bushing. Refer to Fig 4.
The beveled side of the Assembly Tool - Guide Sleeve:T40342/1 -arrow- faces inward toward the final drive.
The beveled side of the Pressure Plate:T40342/4 faces toward the Hydraulic Press:VAS 6178 .

-- Coat the outer edge of the bonded rubber bushing -A- with installation lubricant.

-- Press in the bonded rubber bushing all the way to the Pressure Plate:T40342/4 .
