Control Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

All wheel drive clutch is installed.
The ignition is off.
Pay attention to the general repair information. Refer to REPAIR INFORMATION .

A6 TFSIe

Courtesy of AUDI

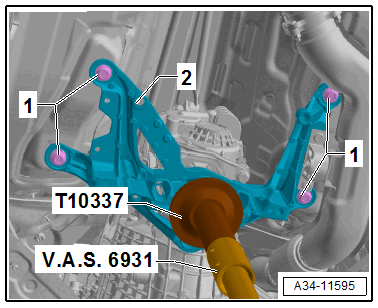

-- Position the Engine and Gearbox Jack:VAS 6931 with the Engine/Gearbox Jack - Gearbox Support:T10337 under the tunnel brace and loosen the bolts -1-.

-- Slightly lower the rear transmission.

Continuation for All

-- Remove the bolts -arrows- and remove the driveshaft heat shield -1- (if equipped).

Courtesy of AUDI

-- If equipped, remove the bolts -1- and remove the heat shield -2-.

Courtesy of AUDI

-- Remove the connector -3- from the All-Wheel Drive Control Module -- -4-.

-- Unclip the cable on the all-wheel drive clutch -arrow- and move it to the side.

-- Remove the bolts -arrows-.

Fig 1: Identifying All Wheel Drive Control Module -J492- -1-

Courtesy of AUDI

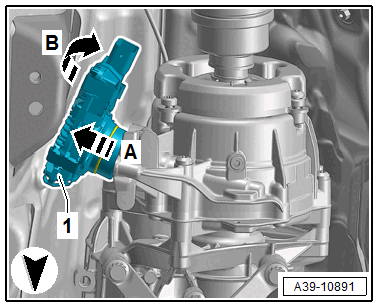

-- Remove the all-wheel drive Control Module -- from the all-wheel drive clutch and set it slightly at an angle and remove downward.

Courtesy of AUDI
