All-Wheel Drive Clutch Output Shaft Seal, Replacing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- All wheel drive clutch is installed.
- The ignition is off.
- Pay attention to the general repair information. Refer to REPAIR INFORMATION .
-- Remove the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
-- Draining the ATF for the all-wheel drive clutch. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .

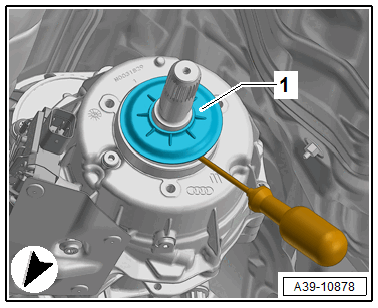

-- Pry off the dust ring -1-.
- The dust ring cannot be removed without destroying it.

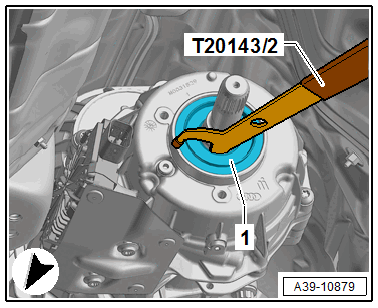

-- Pry out the seal -1- for the all-wheel drive clutch output shaft using the Puller - Crankshaft/Power Steering Seal:T20143/2 .
