All-Wheel Drive Clutch Output Shaft Seal, Replacing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Clean the running and sealing surface.
-- Coat outer edge of the seal with ATF.
-- Fill the space between the sealing/dust lip halfway with Sealing Grease:G 052 128 A1 .

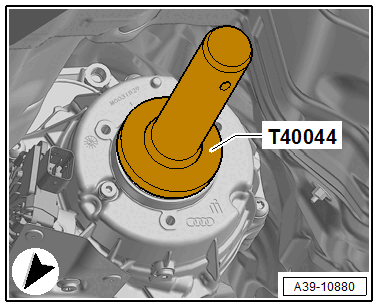

-- Drive on the seal using the Seal Installer - Air Mass Meter:T40044 until it stops. Do not tilt the seal.
- Installed position: The open side of the seal faces the transmission housing.

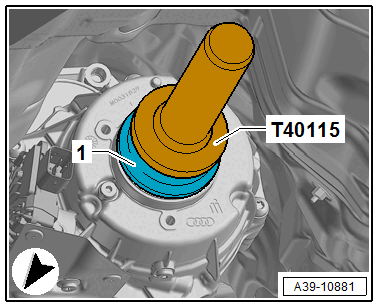

-- Drive on the new dust protector ring -1- using the Seal Installer - Front Propshaft:T40115 until it engages on the output shaft.
-- Add ATF for all-wheel drive clutch and reset the >>oil age adaptation values<< in the All-Wheel Drive Control Module -J492-. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .
-- Install the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
