All-Wheel Drive Clutch Input Shaft Seal, Replacing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Pay attention to the general repair information. Refer to REPAIR INFORMATION .
-- Draining the ATF for the all-wheel drive clutch. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .
-- Remove the all-wheel drive clutch. Refer to ALL-WHEEL DRIVE CLUTCH, REMOVING AND INSTALLING

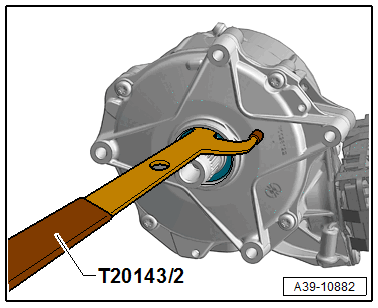

-- Pry out the seal with the Puller - Crankshaft/Power Steering Seal:T20143/2 .
