All-Wheel Drive Clutch Input Shaft Seal, Replacing: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Clean the running and sealing surface.
-- Coat outer edge of the seal with ATF.
-- Fill the space between the sealing/dust lip halfway with Sealing Grease:G 052 128 A1 .
- Installed position: The open side of the seal faces the transmission housing.
- Do not tilt the seal when installing it.

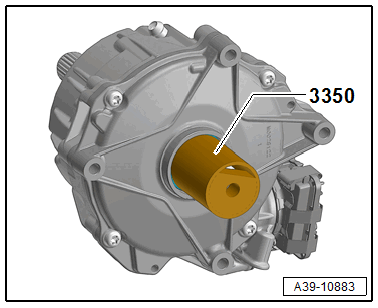

-- Install the seal using the Bearing Installer - Carrier Bearing:3350 to dimension -x-.
- Dimension -x- = 11.2 mm underneath the housing lower edge
-- Install the all-wheel drive clutch. Refer to ALL-WHEEL DRIVE CLUTCH, REMOVING AND INSTALLING
-- Add ATF for all-wheel drive clutch and reset the >>oil age adaptation values<< in the All-Wheel Drive Control Module -J492-. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .
