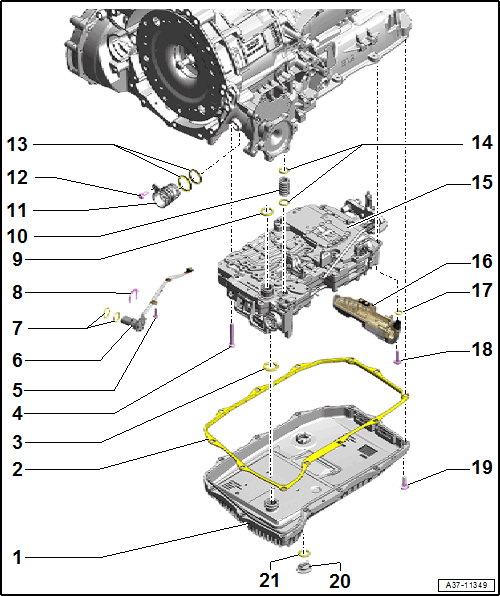

Overview - MECHATRONIC, 0D5 And 0D6
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Coat O-rings and seals with ATF. Other types of lubrication leads to faults in the transmission control module hydraulics.
- Transmission Fluid Pan
- With integrated ATF filter
- Removing and Installing. Refer to the appropriate Service Information. .
- Seal
- Replace after removing
- O-Ring
- Replace after removing
- Bolt
- Tightening specification and sequence. Refer to MECHATRONIC TIGHTENING SPECIFICATIONS .
- Replace after removing
- Bolt
- 10 Nm
- Wiring Harness
- Depending on the version
- For Transmission Fluid Auxiliary Hydraulic Pump 1 -V475-
- Removing and Installing. Refer to TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP WIRING HARNESS, REMOVING AND INSTALLING .
- O-Rings
- Replace after removing
- Lock Washer
- O-Ring
- Replace after removing
- ATF Pipe
- Replace after removing
- Connector Housing
- Replace after removing
- Bolt
- 5.5 Nm
- Seals
- Replace together with the connector housing
- O-Rings
- Replace together with the ATF pipe
- Mechatronic
- Removing and Installing. Refer to MECHATRONIC, REMOVING AND INSTALLING, TRANSMISSION GENERATION 2 .
- Hydraulic Pulse Memory or Auxiliary Hydraulic Pump
- Different versions
- Hydraulic Pulse Memory, Removing and Installing. Refer to HYDRAULIC PULSE MEMORY WITH Accumulator Solenoid -N485-, REMOVING AND INSTALLING .
- Auxiliary Hydraulic Pump, Removing and Installing. Refer to TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- For connection for Transmission Fluid Auxiliary Hydraulic Pump 1 -V475-
- Bolt
- Hydraulic pulse memory: 8 Nm
- Additional hydraulic pump: 4 Nm +45°
- Replace after removing
- Quantity: 3
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Replace after removing
- ATF Drain Plug
- Tighten all the way
- O-Ring
- Replace after removing
Transmission Fluid Pan - Tightening Specification and Sequence (12 Bolts)
-- Tighten the bolts in the steps in the sequence shown:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 12- | Install the new bolts by hand until the bolt heads touch |
| 2. | -1 to 12- | 4 Nm |
| 3. | -1 to 12- | 45° additional turn |

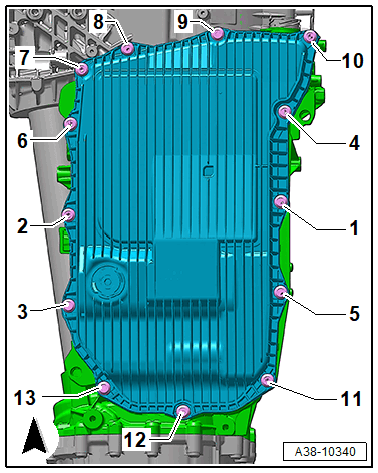

Transmission Fluid Pan - Tightening Specification and Sequence (13 bolts)
-- Tighten the bolts in two steps in the sequence shown:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 13- | Install the new bolts by hand until the bolt heads touch |
| 2. | -1 to 13- | 10 Nm |
