Transmission Fluid Screen, Removing And Installing: Installing

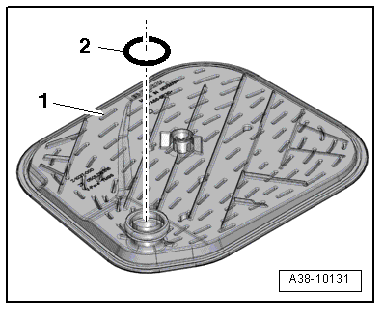

Fig 1: Identifying ATF Filter O-Ring On

Courtesy of AUDI

Install in reverse order of removal with note to the following:

-- Mount the O-ring -2- on the ATF filter -1-.

-- Clean both magnets -arrows-. Make sure the magnets completely contact the depressions in the ATF filter.

Fig 2: Cleaning Both Magnets Make Sure Magnets Completely Contact Depressions In ATF Filter

Courtesy of AUDI

-- Mount the ATF filter on the Mechatronic.

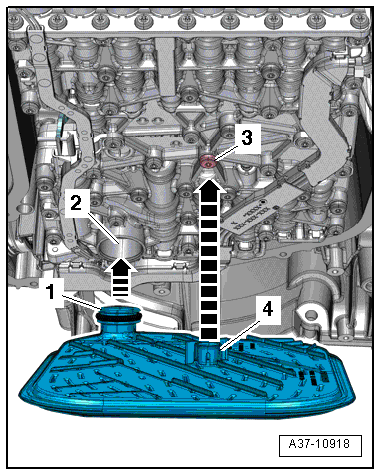

Fig 3: Identifying ATF Filter Correct Mounting

Courtesy of AUDI

• The collar -1- on the ATF filter must be installed all the way into the opening -2- in the Mechatronic.
• The mount -4- on the back must fit into the bolt -3- on the Mechatronic.

-- Install the transmission fluid pan. Refer to the appropriate Service Information. .

-- Fill with ATF. Refer to the appropriate Service Information. .
