Special Tools

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Puller - Unit Injector: T10055

Courtesy of AUDI OF AMERICA, LLC
Locking Pin: T10060A for generator

Fig 1: Identifying Locking Pin
Courtesy of AUDI OF AMERICA, LLC

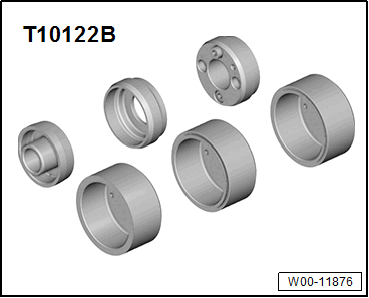

Crankshaft Seal Installer Kit: T10122B

Courtesy of AUDI OF AMERICA, LLC
Torx Screw Driver - T25: T10248
Gauge - Sender Wheel: T10473

Courtesy of AUDI OF AMERICA, LLC
Puller - Crankshaft/Power Steering Seal: T20143/2

Fig 2: Crankshaft / Power Steering Seal Puller
Courtesy of AUDI OF AMERICA, LLC
Locking Pin (3 pc.): T40011

Fig 3: Identifying Locking Pin T40011
Courtesy of AUDI OF AMERICA, LLC
Puller - Crankshaft Seal: T40019

Fig 4: Identifying Oil Seal Extractor T40019
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Key: T40049

Fig 5: Crankshaft Key T40049
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm: T40263

Fig 6: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Adapter: T40314

Fig 7: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Assembly Tool: T40320

Courtesy of AUDI OF AMERICA, LLC
Counterholder: T40330

Courtesy of AUDI OF AMERICA, LLC
Puller: T40332

Courtesy of AUDI OF AMERICA, LLC
Adjusting Pin: T40362
Dial Gauge - 0-10mm: VAS6079

Fig 8: Dial Gauge
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers: VAS6362

Fig 9: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC

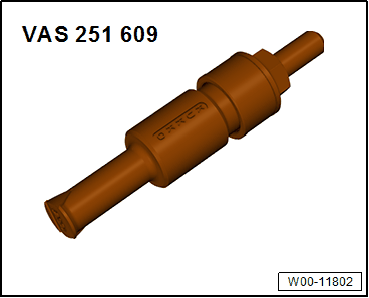

Internal Puller: VAS251609

Courtesy of AUDI OF AMERICA, LLC
Counter Support: VAS251623

Courtesy of AUDI OF AMERICA, LLC
Pilot Drift: VW222A

Fig 10: Identifying Pilot Drift
Courtesy of AUDI OF AMERICA, LLC
Dial Indicator Holder: VW387

Fig 11: Dial Gauge Holder
Courtesy of AUDI OF AMERICA, LLC
Counterhold - Flywheel: 10-201

Courtesy of AUDI OF AMERICA, LLC
Not illustrated:
TORX^® T55 Socket, Commercially Available for A/C Compressor
Wrench - 21mm: T40263
Camshaft Lock: T40264
Adapter: T40314
Piston Installation Sleeve: T40369
Torx Bit - T40: T10545
Piston Ring Pliers: VAS211003
