A/C Compressor Bracket, Removing And Installing, 2.9L Engine Without Electrical Compressor: Removing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the A/C compressor from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .
-- Remove the ribbed belt tensioner for the A/C compressor. Refer to RIBBED BELT TENSIONER FOR A/C COMPRESSOR, REMOVING AND INSTALLING, 2.9L ENGINE .
-- Remove the bolt -1-, and only loosen the nut -2-.

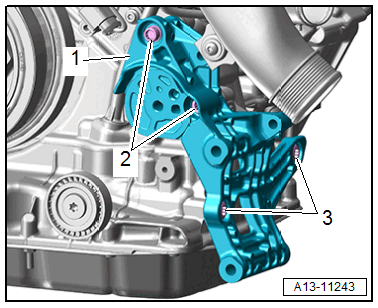

-- Remove the bolts -2 and 3- and the bracket -1- for the A/C compressor.
