Ribbed Belt For Generator, Removing And Installing, 2.9L Engine: Installing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

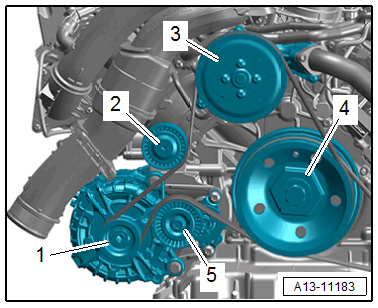

-- Install the ribbed belt. Refer to Figure.
-- Pivot the ribbed belt tensioner for the generator using a wrench slightly counter-clockwise in direction of -arrow- and remove the : T10060A .
-- To tension the ribbed belt release the tensioner.
-- Check whether the ribbed belt is routed correctly.
-- Install the A/C compressor ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
-- Start the engine and check the ribbed belt routing.
There are different procedures depending on the model. Refer to RIBBED BELT, REMOVING AND INSTALLING .
